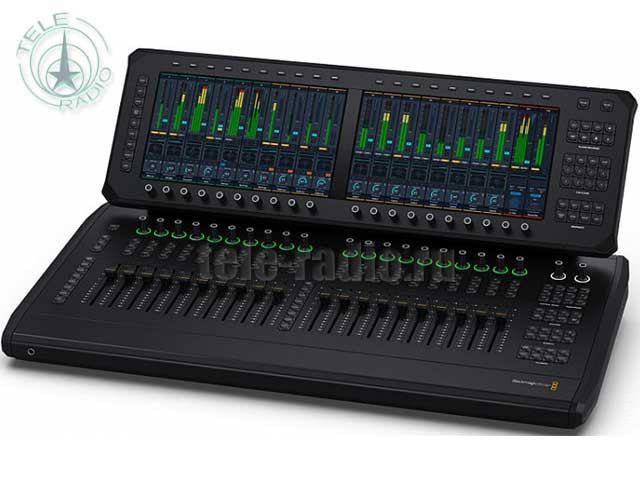

Fairlight Live Audio Panel 20 аппаратная панель управления аудиомикшером. Fairlight Live Audio Panel 20 - аппаратная панель с 20 моторизованными фейдерами и 2 большими сенсорными дисплеями для управления аудиомикшером Fairlight Live. Предназначена для сведения звука в реальном времени в небольших и средних студиях. Сенсорные дисплеи отображают данные о полосе звуковых каналов, уровнях звука, эквалайзере, динамической обработке и подключаемых интерфейсах.
| Connections | |
| 2110 IP Video and Audio Networks | 2 x 10G RJ45 Ethernet connections. |
| Senders and Receivers per 10G Pair | Supports 2110 IP video and audio plus analog audio in and out of panel. |
| 1G Control Network | 1 x 1G RJ45 for computer connection, configuration and software updates. |
| HDMI Monitor Outputs | 1 |
| Analog Audio Inputs | 1 x 3-pin XLR for mic level analog audio. |
| 1 x 5-pin XLR for talkback headset. | |
| Analog Audio Outputs | 2 x 3-pin XLR for line level analog audio. |
| 1 x 5-pin XLR for talkback headset. | |
| 2 x 6.35mm headphone jack. | |
| Computer Interface | 1 x USB Type‑C for computer connection, software configuration and software updates. |
| HDMI Video Output | 1 x HDMI Type A. |
| Power | 2 x IEC C14 power inputs. |
| Display | |
| Built in Display | 2 x 11.6 inch 1920 x 1080 LCD touch screens. |
| HDMI Out | HD or Ultra HD |
| Video Standards | 720p50, 720p59.94, 720p60 |
| 1080i50, 1080i59.94, 1080i60 | |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 | |
| 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 | |
| Controls | |
| Channel Faders | 20 flying faders. |
| Channel Rotary Knobs | 20 multi function rotary knobs with ring LED indicators. |
| Channel Control Buttons | Select, Solo and Mute for each channel. |
| Channel Focus | Processing and input controls for selected channel. |
| Contextual Rotary Knobs | 20 rotary knobs to adjust associated parameters appearing on lower row of focus and view screens. |
| Contextual Buttons | 20 buttons to activate functions or adjust parameters appearing on upper row of focus and view screens. |
| On Line Button | Online mode follows timecode from external source. |
| On Air Button | On Air mode locks panel. |
| Player/Recorder Keypad | Controls for the Player/Recorder support recording performances/rehearsals, playback for Virtual Sound Checks |
| Cue Player Keypad | Cue Player controls - Jingle/Cart player for SFX stingers plus supports MIDI cues for triggering external devices. |
| Snapshots Keypad | Store and recall mixer settings and configurations. |
| Control Room and Monitoring Keypad | Controls for source selection and monitor circuit selection. |
| Masters Keypad | Controls for master views and enabling masters on faders. View Only selection sends metering views to screen, when off selection targets faders. |
| Globals Keypad | Global controls include forward, back, undo and escape plus access the setup screen and 3 x USER defined buttons. |
| Talkback Keypad | Controls for talkback to 4 groups, direct to channel and ALL. Dedicated cue mode button plus access the talkback setup screen. |
| Talkback | |
| Microphone | 1 x built in talkback microphone. |
| Talkback Connections | 1 x 5-pin XLR headset |
| 1 x 3-pin XLR Mic input | |
| 2 x 6.35mm headphone sockets | |
| 2 x 3-pin XLR audio monitor outputs. | |
| Talkback Selection | Talkback groups, direct to channel, or all. |
| Talkback Groups | 4 |
| Software | |
| Software Included | Fairlight Live |
| Blackmagic OS | |
| Internal software upgrade via updater application. | |
| Operating Systems | |
| Mac 15.0 Sequoia, | |
| Mac 26.0 Tahoe or later. | |
| Windows 11 | |
| Settings Control | |
| Fairlight Live software when connected by Ethernet or USB. | |
| Power Requirements | |
| Power Supply | 2 x 100 ‑ 240V AC 50/60Hz internal power supplies. |
| Power Inputs | 2 x IEC C14 sockets. |
| Power Usage | TBC |
| Environmental Specifications | |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Storage Temperature | -20° to 60°C (-4° to 140°F) |
| Relative Humidity | 0% to 90% non-condensing |
| What's Included | |
| Fairlight Live Audio Panel 20 | |
| Welcome wallet with QR code for software download | |
| Warranty | |
| 1 Year Limited Manufacturer’s Warranty. | |
